Automated 3D scanners
Part measurement without operator influence
3D scanning is a technology which creates a digital 3D model of a physical object. The technology is based on a light pattern being projected on the object, and is therefore also called 3D light scanning or 3D white light scanning.
The fully automated systems differ from manual 3D scanning by having one or more programmable robots, thereby increasing the speed at which series of parts are measured.
With its specialized software, even complex measuring assignments are easily programmed.
ScanBox for robotic measurement
Zebicon is the Danish distributor of optical metrology systems from Carl Zeiss GOM Metrology, who's series of automated 3D scanners are called ScanPort, ScanCobot and ScanBox. These systems are designed to use various ATOS and GOM 3D scanners, depending on part size and needs.
Common for all ScanBox solutions are high repeatability and fast measurement for quality control of part series.
Exclusive to the ScanBox series, is the specialized software VMR (Virtual Measuring Room). This software simulates robot- and camera movements relative to the part, before the scanning is initiated.
The system accounts for shiny surfaces and adjusts to the optimum position, without damaging the part or the operator.

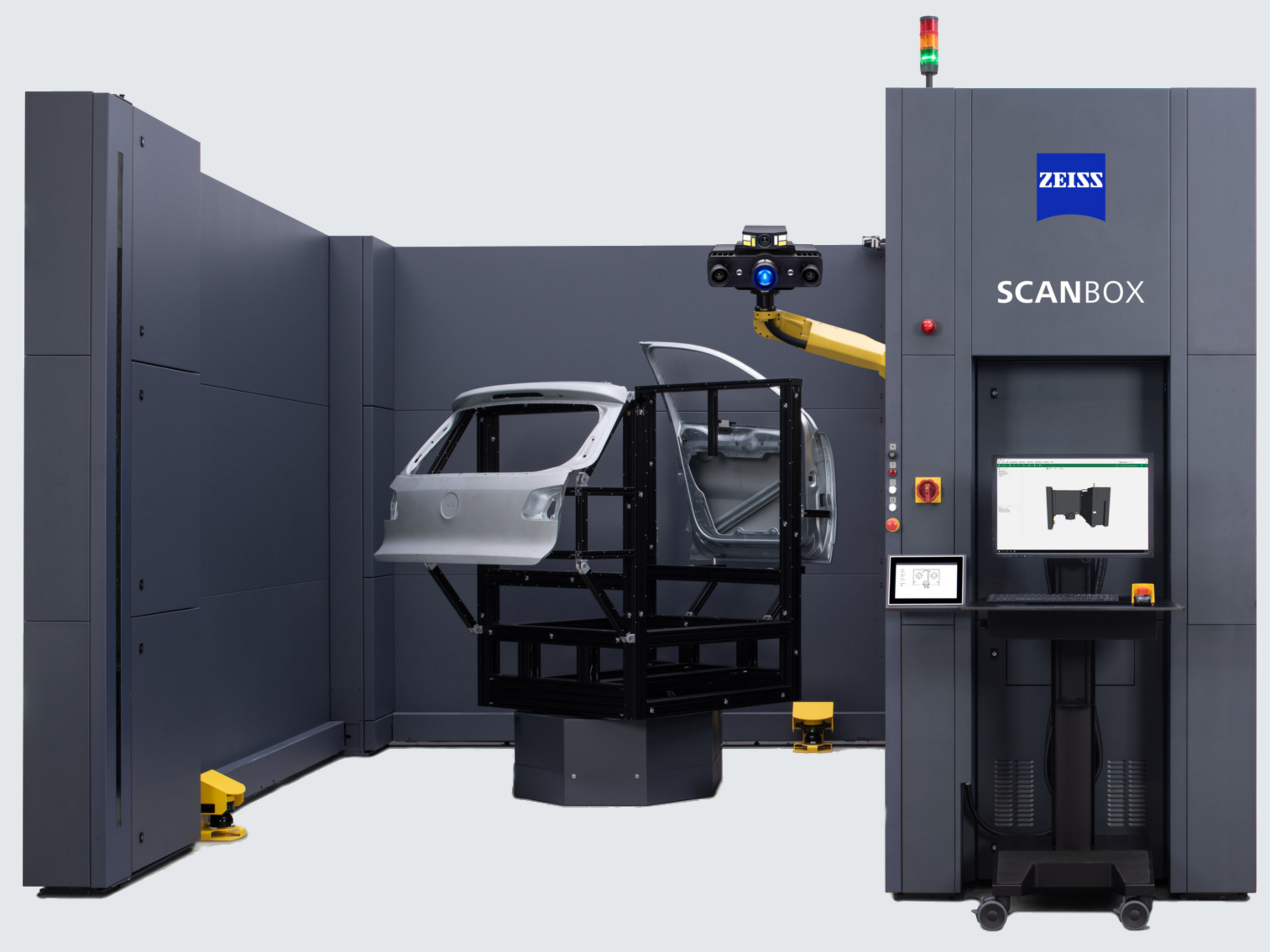

ATOS ScanBox 6135 and 6230 are ideal for part measurement of large components up to 3500 mm and 5000 kg.
ATOS ScanBox 6135 og 6230 er velegnet til opmåling af store komponenter op til 3500 mm og 5000 kg.
ZEISS ScanPort, ZEISS ScanCobot and ATOS ScanBox series
ZEISS ScanPort is a mobile and flexible solution for semi-automatic 3D scanning of small and medium-sized objects up to 500 mm and 20 kg.
ZEISS ScanCobot is a cost-effective solution to get started with automated 3D scanning of parts up to 500 mm and 50 kg.

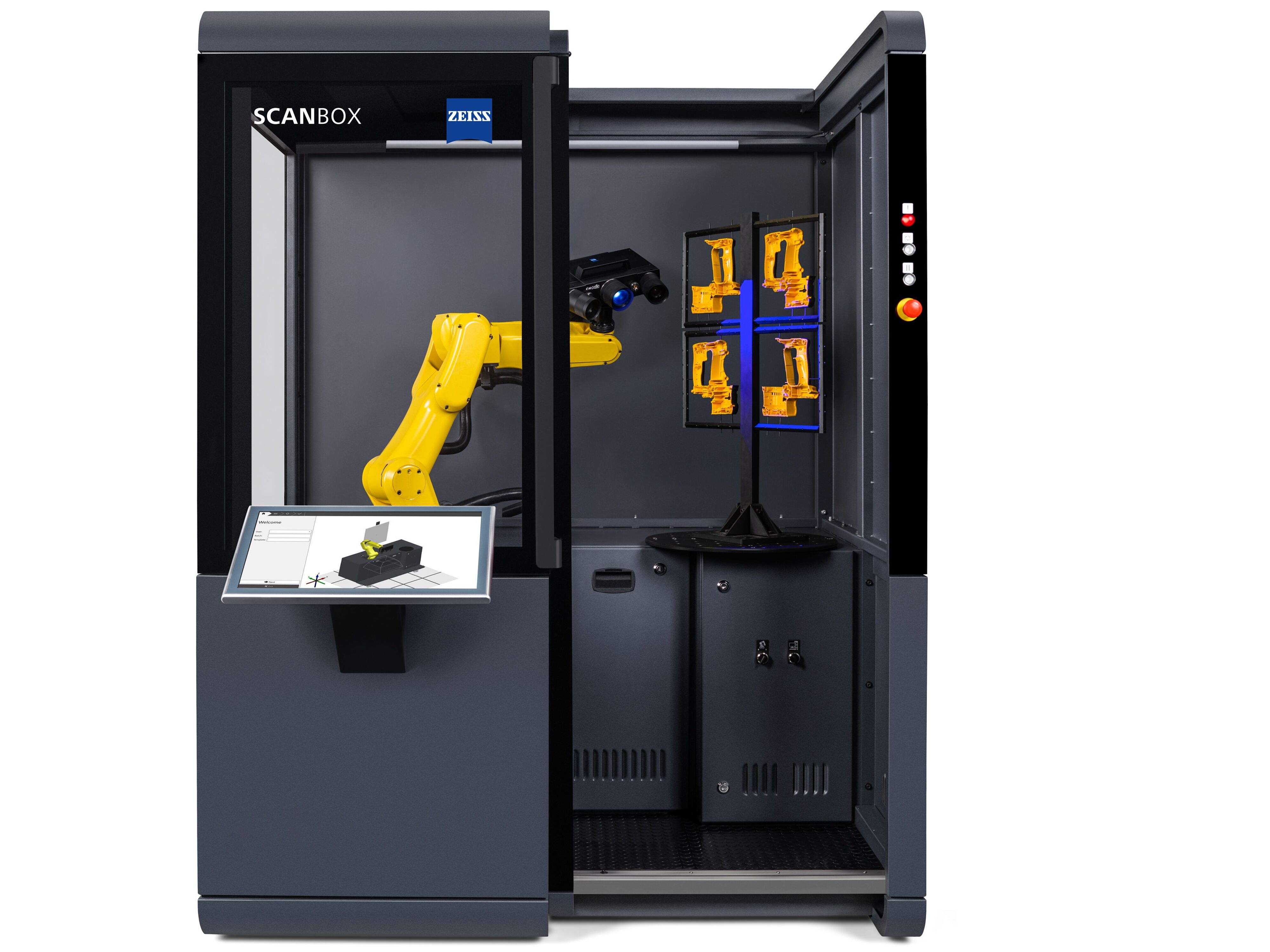

ATOS ScanBox 4105 is a fully automated metrology system, which is ideal for quality control of smaller parts up to 500 mm and 100 kg.
ATOS ScanBox solutions in use
Ammeraal Beltech Modular
Ammeraal Beltech Modular has invested in the fully automated ATOS ScanBox 4105, which is used for quality control of tools and parts.
HBN-Teknik A/S
HBN-Teknik has invested in the fully automatic ATOS ScanBox 5120, for running in new products and part verification.
